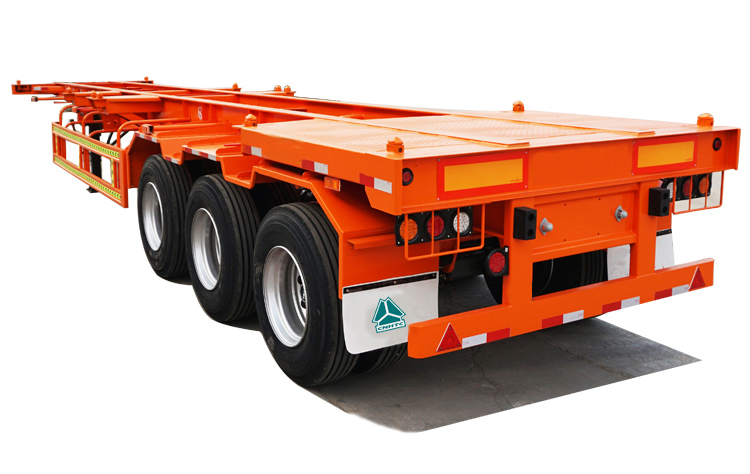

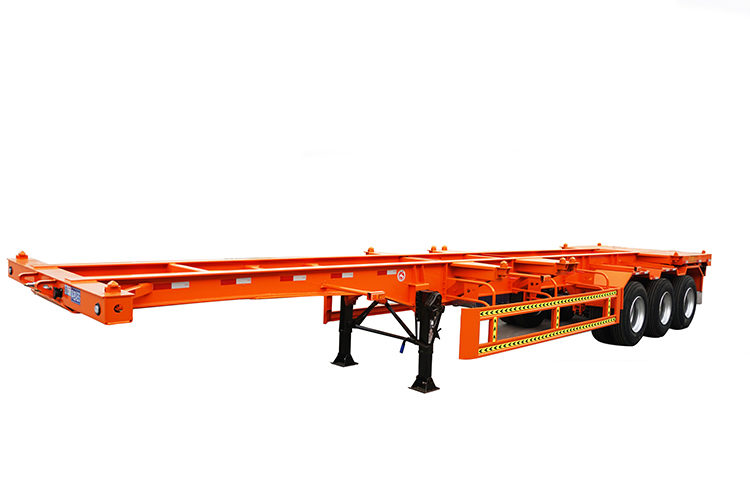

3 Axle 40FT Skeleton Truck Semi Trailer Product Description
| Height of the beam is 500 mm, upper plate 16mm,down plate 18mm, middle plate 10mm. | |
| Overall dimension | 12500X2500X1550mm |
| Load capacity | 50Ton |
| Axles | FUWA/BPW brand, 3units, 13Ton capacity |
| Tyres | 12.00R22.5, 12units |
| Rims | 9.0-20, 12units, aluminum alloy |
| Kingpin | 90# |
| Landing gear | 28T, double speed operation |
| Brake | Dual Line braking system |
| Electric | 24V,7 pin socket,One set 6-core standard Cable |
| Lights | Rear electrical lighting, brake lights, indicators, fog lights and reversing light |
| Painting | Sand blasting before painting. One coat of primer, anti corrosion. Two coats of finish painting. Color advised by customer |
| Packing | Polish with wax |
